Technical selection
Specifications and configuration
Reference — PFG200 Series
| Parameter | Documented value / configuration |
|---|---|
| Product type | Separate three-screen, four-channel flow monitor; sensing heads are separate products |
| Channel capacity | Up to four compatible flow sensors can be connected |
| Sensor compatibility | Listed compatible SMC sensor families: PF2A, PF3W-Z, PF3W and PF2D; verify input/output code |
| Accumulated flow | Monitor can manage accumulated flow for up to four lines |
| Analog input boundary | Hub function supports a 1–5 V analogue-voltage sensor output; actual monitor configuration must be selected |
Manufacturer series reference. Confirm the exact order code, mating parts and stated conditions for the quoted configuration.
Overview
PFG200 is a separate flow-monitoring display and control interface, not a wetted flow sensor. It consolidates signals from up to four compatible sensor channels in one panel unit.
Construction and interfaces
The manufacturer photograph shows a complete three-screen display body with channel markings and front controls. Sensors, fluid connections and wiring accessories are separate from the pictured monitor.
Selection

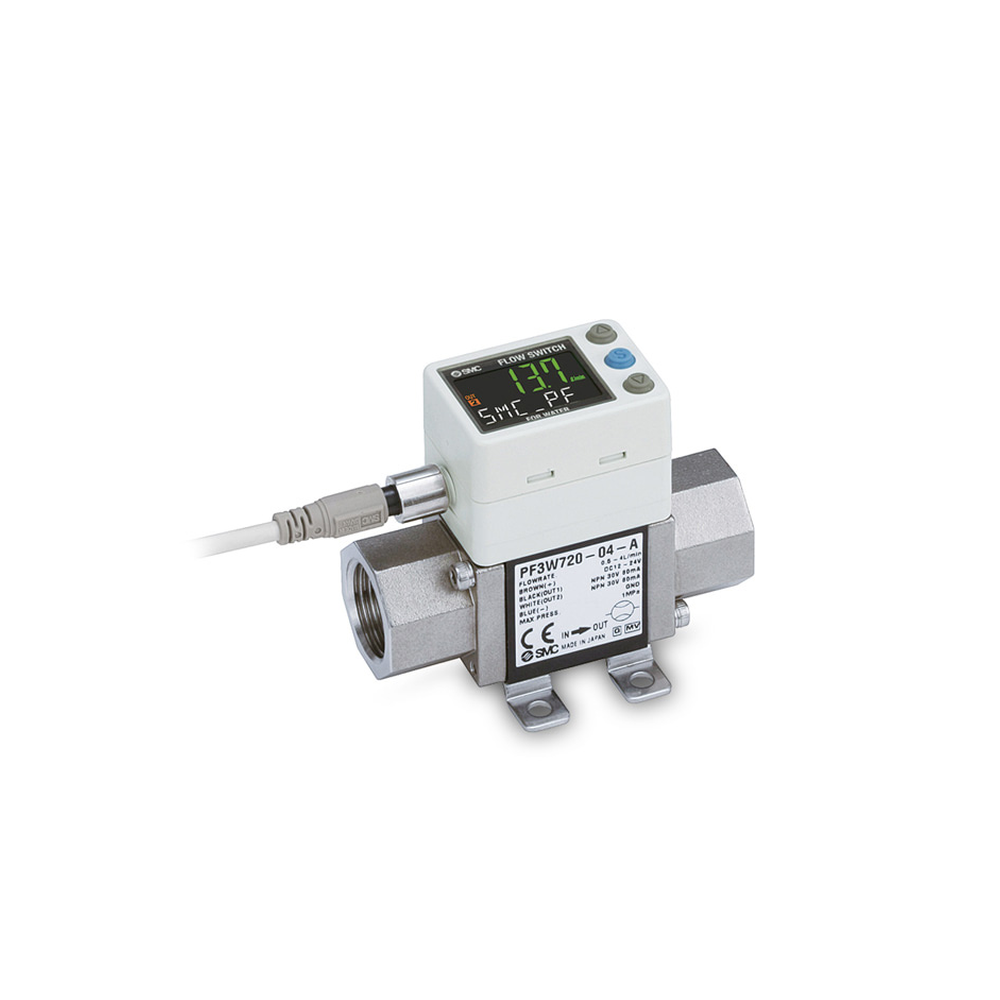

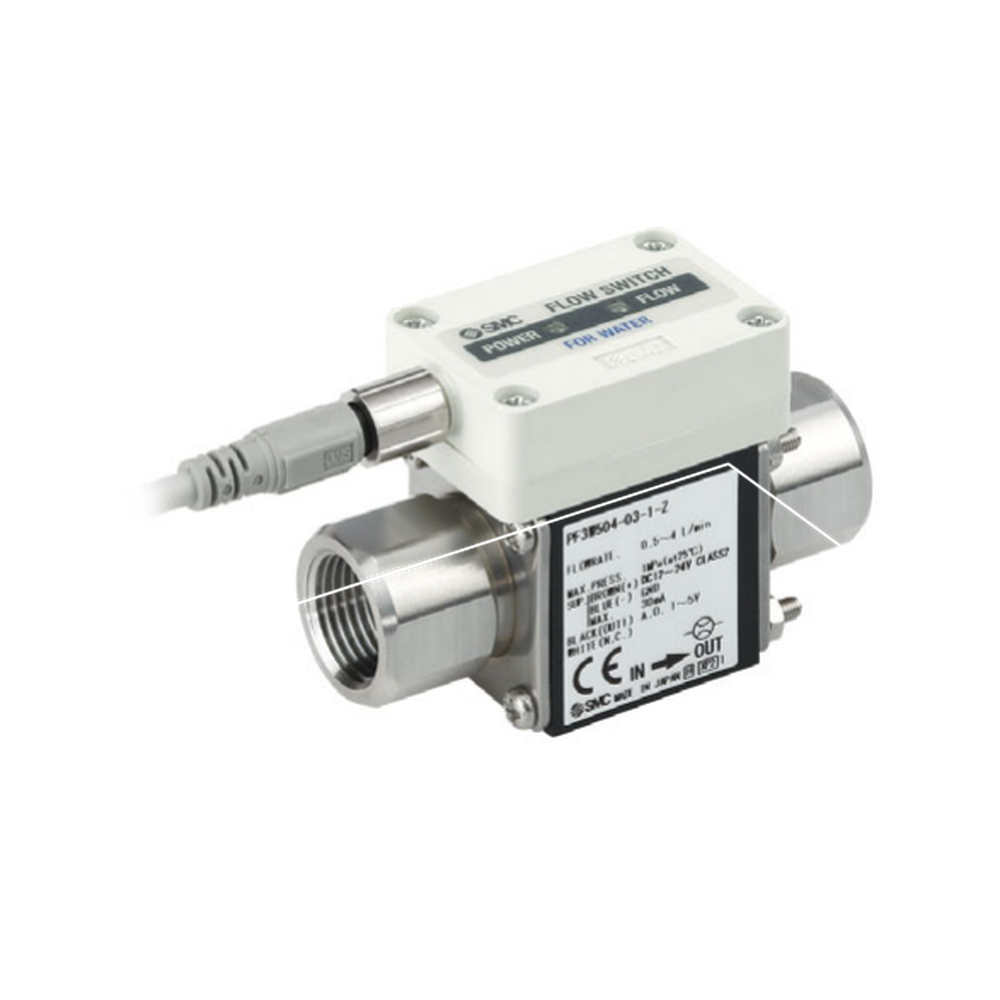

Match each connected sensor's output format and the PFG200 input configuration. SMC lists PF2A, PF3W-Z, PF3W and PF2D sensor families, but exact part-code compatibility needs checking.
Configuration options
The product supports accumulated-flow monitoring across up to four lines and a 1–5 V analogue-voltage input path under the stated hub-function configuration. Select required output and mounting options separately.
Application limits
A display reading is not proof of flow accuracy in an arbitrary loop. Sensor range, electrical interface, wiring and calibration conditions belong to the complete selected measurement chain.
