Technical selection
Specifications and configuration
Reference — CYCT
| Parameter | Documented value / configuration |
|---|---|
| Effective diameter options | DN3 to DN12Conditions: scope: series range; exact part needed |
| Body material | Aluminum alloyConditions: scope: body, not full wetted-material list |
| Locking mechanism | Latch-locking, push-to-lock engagementConditions: scope: manufacturer series description |
| Listed operating temperature | -40 to +125 degCConditions: scope: website series summary; seals, coolant and pressure-temperature pairing not provided |
Manufacturer series reference. Confirm the exact order code, mating parts and stated conditions for the quoted configuration.
Overview
A snap-on, latch-locking quick coupler supports tool-light manual engagement where the mating halves and installation envelope are accessible. It is a different procurement choice from a ball-lock or guide-dependent blind-mate connector.
Construction and interfaces

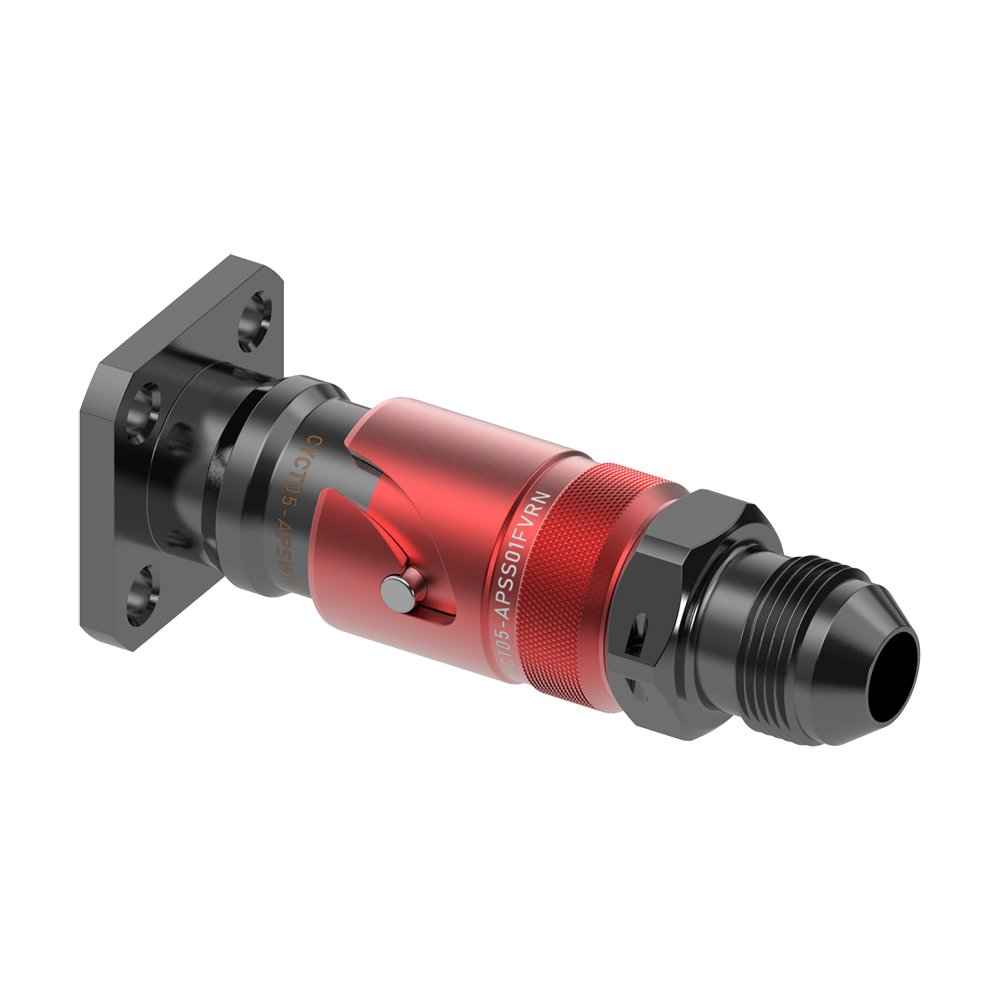

The supplier identifies an aluminum-alloy body and a push-to-lock latch mechanism. The photographed CYCT05 reference shows the series style, while the actual seal, finish, wetted path and end configuration need exact drawings.
Selection
Review latch accessibility, release clearance and retention under pressure and handling loads. Match coolant chemistry, flow and pressure-drop duty to the selected socket and plug; the listing's broad temperature span alone is not a complete rating.
Configuration options
The manufacturer lists a DN3-to-DN12 diameter range. Specify one size, two end terminations, seal material, retention detail, mounting envelope and any protective cap or service accessory separately.
Application limits
Do not treat the pictured unit as all listed sizes or promise compatibility with an unspecified mating brand. Temperature, pressure and leakage must be assessed for the chosen configuration and test method.
