Technical selection
Specifications and configuration
Reference — FT series
| Parameter | Documented value / configuration |
|---|---|
| Body material options | 316 stainless steel or brass; distinct material configurationsConditions: scope: FT series catalog only. Element size and material must match the selected order code. Nominal micron choices are not universal mesh conversion or proof of coolant compatibility. |
| Filter element material | 316 stainless steelConditions: scope: FT series catalog only. Element size and material must match the selected order code. Nominal micron choices are not universal mesh conversion or proof of coolant compatibility. |
| Filter element types | Sintered element or woven wire meshConditions: scope: FT series catalog only. Element size and material must match the selected order code. Nominal micron choices are not universal mesh conversion or proof of coolant compatibility. |
| Sintered nominal pore options | 0.5, 2, 7, 15, 40, 60, 80 micrometreConditions: scope: FT series catalog only. Element size and material must match the selected order code. Nominal micron choices are not universal mesh conversion or proof of coolant compatibility. |
| Mesh nominal pore options | 100, 150, 250, 450 micrometreConditions: scope: FT series catalog only. Element size and material must match the selected order code. Nominal micron choices are not universal mesh conversion or proof of coolant compatibility. |
| Nominal rating basis | Catalog note: 95% removal of solid particles larger than nominal pore size; not an absolute ratingConditions: scope: FT series catalog only. Element size and material must match the selected order code. Nominal micron choices are not universal mesh conversion or proof of coolant compatibility. |
| Service arrangement | T-shaped body with replaceable filtering elementConditions: scope: FT series catalog only. Element size and material must match the selected order code. Nominal micron choices are not universal mesh conversion or proof of coolant compatibility. |
| Pressure temperature selection | Use material-specific pressure-temperature curve; maximum pressure and maximum temperature are not simultaneousConditions: scope: FT series catalog only. Element size and material must match the selected order code. Nominal micron choices are not universal mesh conversion or proof of coolant compatibility. |
Manufacturer series reference. Confirm the exact order code, mating parts and stated conditions for the quoted configuration.
Overview

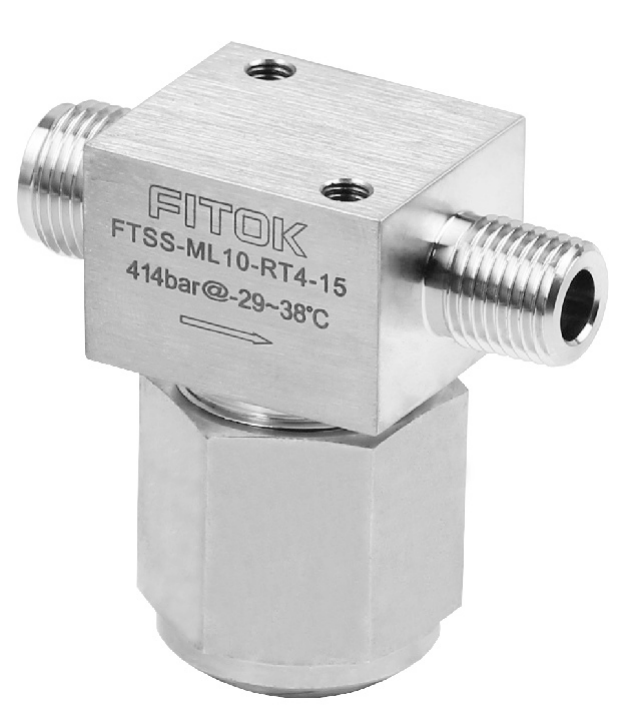

This serviceable filter uses a tee-shaped body to place a replaceable element in the coolant line. It is a component-level particle-control choice, not proof that a complete loop meets a cleanliness class.
Construction and interfaces
The reference body has an inline flow path and a lower element chamber that can be opened for service. Element construction and material, body alloy, connection and flow direction must follow the chosen order code.
Selection
Define the particle-control objective and the manufacturer's nominal rating basis before comparing elements. The documented nominal pore sizes do not convert directly to an absolute beta ratio or to mesh number across all media.
Configuration options
The documented series includes sintered and woven-mesh elements with different nominal pore choices, plus distinct body material configurations. Element size and pore choice must be associated with the exact housing and service method.
Application limits
The maximum pressure and temperature figures from separate material curves cannot be combined as one operating point. Clean and loaded pressure loss, coolant compatibility, replacement interval and contamination load require project-specific verification.
