Reference — AODSON three-segment sanitary clamp reference
| Parameter | Documented value / configuration |
|---|---|
| Clamp configuration | Three articulated hinged segments with threaded wing-nut closure for compatible ferrules |
| Material options | 2205 duplex or 2507 super-duplex stainless steel listed as alternate grades |
| Connection boundary | Clamp ring profile and diameter follow the selected ferrule and gasket; no standalone joint pressure rating is specified |
Manufacturer series reference. Confirm the exact order code, mating parts and stated conditions for the quoted configuration.
Overview
Three articulated ring sections provide a distinct opening and clamping geometry from the two-piece hinge type. Use the joint drawing to choose the correct configuration for facility-side removable piping.
Construction and interfaces

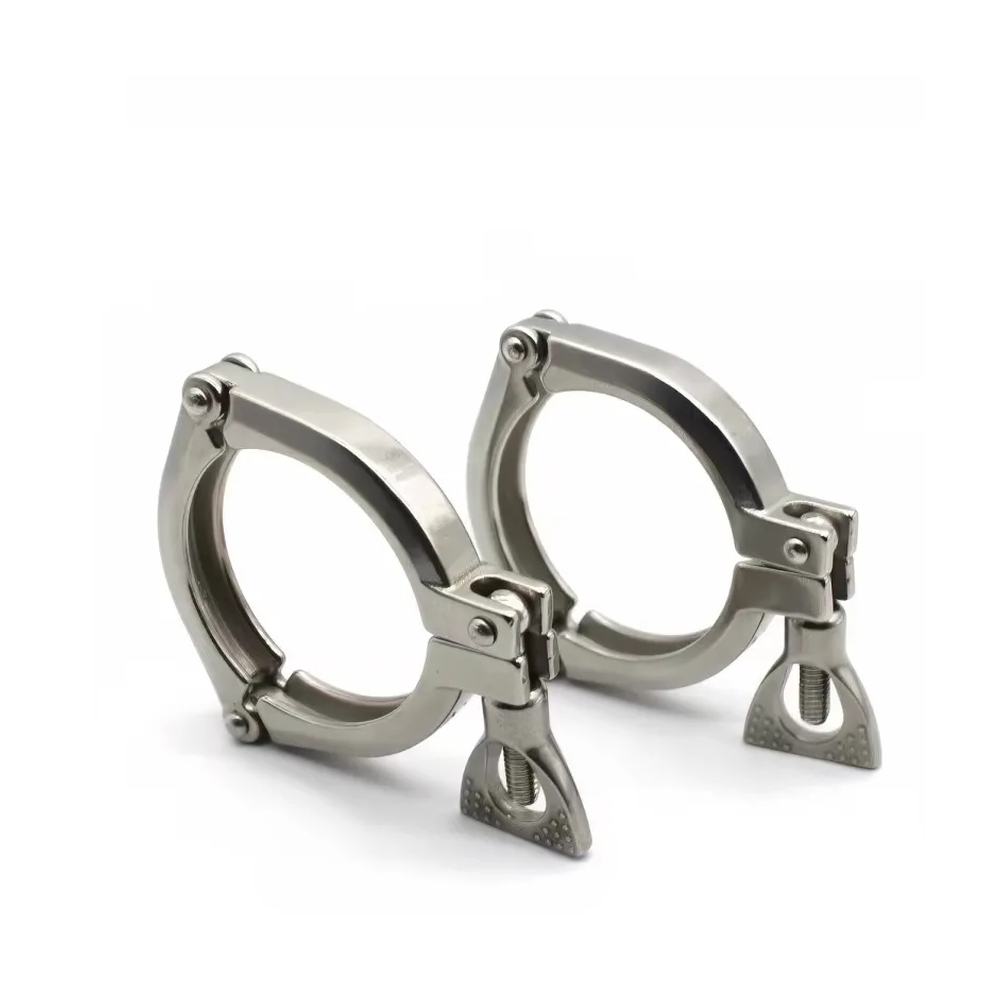

The original photograph shows two size examples with visible section hinges and wing-nut closures. The manufacturer lists 2205 and 2507 as alternate material options, not simultaneous material in one item.
Selection
Match ring profile and inside clamping geometry to the paired ferrules and gasket. Opening clearance, installation envelope and grade selection depend on the actual line specification.
Configuration options
Select 2205 or 2507 after corrosion and mechanical review; clamp diameter, section thickness, bolt length, finish and documentation follow the approved drawing.
Application limits
The clamp is not a complete pressure joint. Its allowable service is determined with ferrules, gasket, assembly procedure, fluid, temperature and applicable piping standard; no certification is assumed.
