Technical selection
Specifications and configuration
Reference — AODSON 2205 two-piece sanitary clamp reference
| Parameter | Documented value / configuration |
|---|---|
| Clamp configuration | Two hinged ring sections with adjustable threaded wing-nut closure for compatible ferrules |
| Material | 2205 duplex stainless steel identified for the two-piece clamp reference |
| Construction options | Light, medium-duty thickened and heavy-duty thickened constructions listed; final ferrule outside diameter and profile must be selected |
Manufacturer series reference. Confirm the exact order code, mating parts and stated conditions for the quoted configuration.
Overview
The clamp closes around compatible paired ferrules and gasket to make a removable pipe connection. Its two hinged ring sections have a different opening envelope from a three-segment clamp.
Construction and interfaces

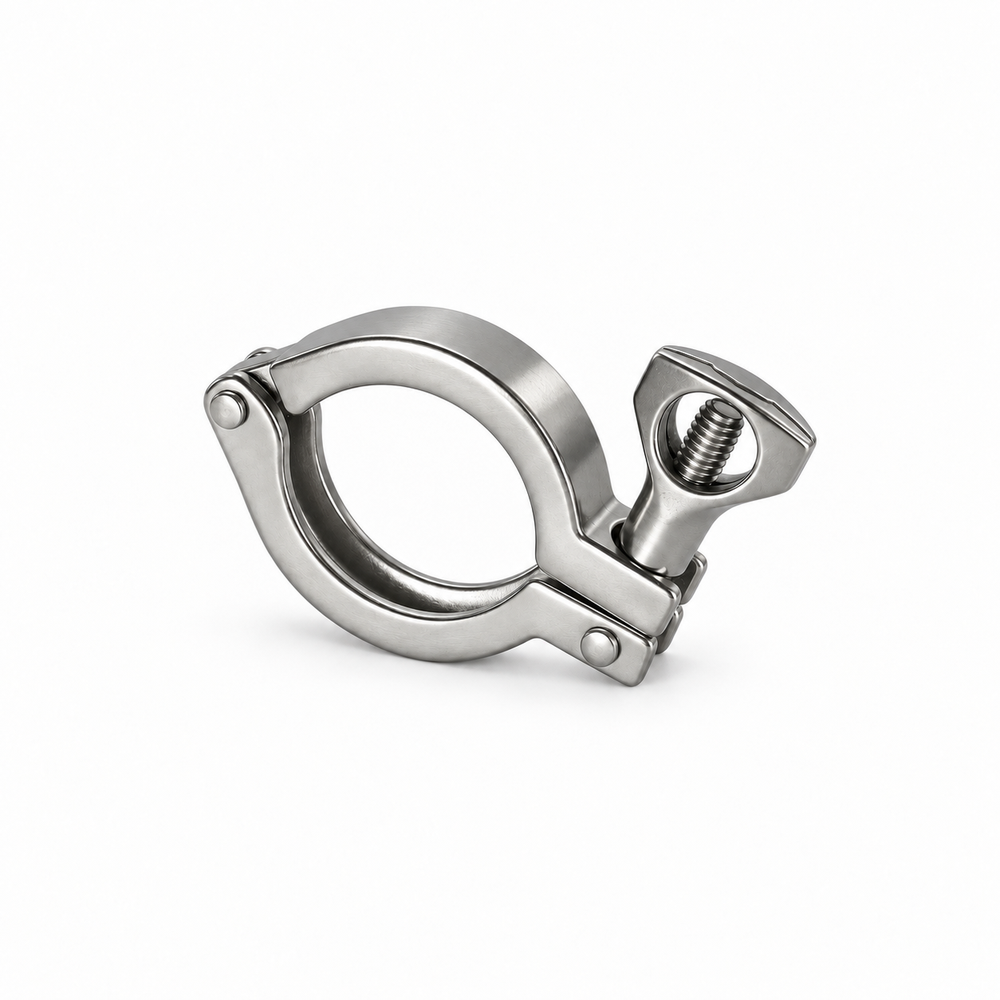

The maker's product photo shows the two-part ring, hinge pin and threaded wing-nut closure. The product page identifies 2205 duplex stainless steel for this reference.
Selection
Choose by ferrule outside diameter and sealing profile, not by tube nominal size alone. The maker lists light, medium-thickened and heavy-thickened constructions; the required class depends on the full joint.
Configuration options
Clamp diameter, ring profile, thickness, bolt length, finish and traceability are drawing-dependent. Ferrules and gasket are separate mating parts to specify explicitly.
Application limits
A clamp image or 2205 grade does not establish a complete joint pressure, temperature or chemical rating. Verify ferrules, gasket, installation method, fluid and governing standard together.
