LCP-000058 / Product configuration

SUS316 Male-Branch Tee Fitting — SMC KQG2T06-02S Reference

Two 6 mm push-in tube positions with an R1/4 male-threaded branch form a different three-port purchasing object from a tube-only tee. The official table identifies this configuration.

Connection
Two 6 mm nominal tube outside-diameter connections × R1/4 male-thread branch
Ordering code
KQG2T06-02S; double-tube T with R1/4 male branch
Effective area
13.9 mm² effective sectional area with FEP tube
Series operating envelope
KQG2 series: water listed; −100 kPa to 1 MPa operating range; −5 to 150 °C without freezing; SUS316 metal parts
Prepare inquiry requirementsBrowse categories

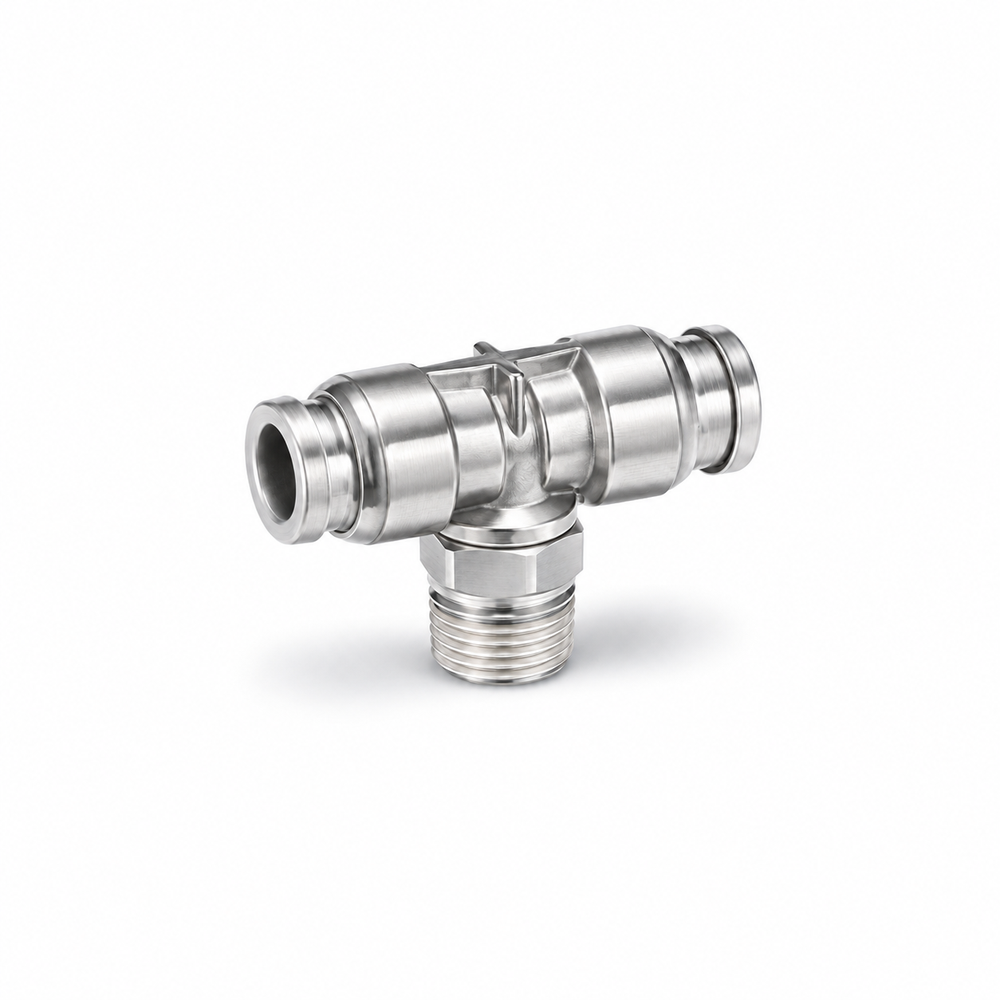

SMC KQG2T male branch tee, official KQG2 series-shape image.
SMC KQG2T male branch tee, official KQG2 series-shape image.LCIMG-000686 · Local reference image

Product imagery

SMC KQG2T male-threaded tee fitting, series-shape illustration; exact 6 mm/Rc ordering suffix follows the catalogue table.
SMC KQG2T male-threaded tee fitting, series-shape illustration; exact 6 mm/Rc ordering suffix follows the catalogue table.LCIMG-000317 · Local reference image

Technical selection

Specifications and configuration

Reference — SMC KQG2T06-02S

ParameterDocumented value / configuration
Ordering codeKQG2T06-02S; double-tube T with R1/4 male branchConditions: scope: Exact catalogue row; image is series shape
ConnectionTwo 6 mm nominal tube outside-diameter connections × R1/4 male-thread branchConditions: scope: Branch orientation shown in series illustration
Effective area13.9 mm² effective sectional area with FEP tubeConditions: scope: Catalogue value stated for FEP tube; not flow rate
Series operating envelopeKQG2 series: water listed; −100 kPa to 1 MPa operating range; −5 to 150 °C without freezing; SUS316 metal partsConditions: scope: Series-level envelope; tube and seal choice may limit assembly

Manufacturer series reference. Confirm the exact order code, mating parts and stated conditions for the quoted configuration.

Overview

This three-port T branches a tube run into an R1/4 threaded interface. The branch might serve a sensor, drain or other component only after the circuit drawing confirms the function.

Construction and interfaces

Two tube sockets take 6 mm nominal-OD tubing and the third connection is an R1/4 male thread. The KQG2 catalogue lists SUS316 metal parts and shows the tee as a distinct form.

Selection

Identify supply, return and branch function on a three-port sketch. Confirm the threaded mating component, tube retention and allowable pressure drop for the actual branch duty.

Configuration options

Different tube ODs or thread sizes appear as separate catalogue rows. A separate branch device, isolation strategy or test port must be specified in the complete assembly BOM.

Application limits

The published effective area refers to FEP tubing, not a flow rate or pressure-drop curve. The image is a low-resolution series visual, not the controlled dimension drawing for every suffix.
