Specify isolation duty, connection and service-access requirements.
Component selection
9 local draft records. Includes unfinished records and Family overviews. Draft · Noindex. Reference configurations are not approved stock. Image public-use review remains separate.
Show content-ready draftsLCP-000106

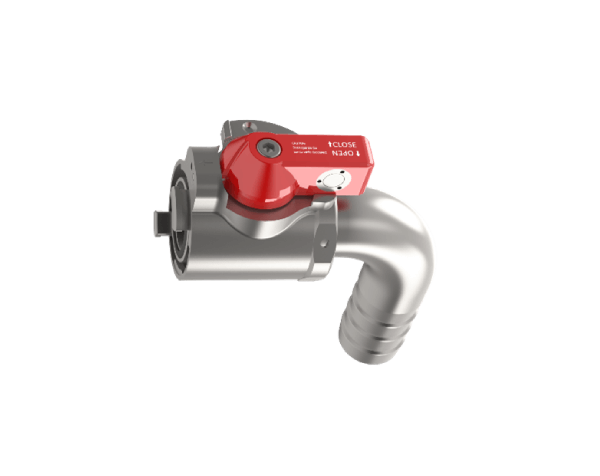

A single FND valve half with a 90-degree barbed hose outlet, supplied as an interface choice for a matched interlocking pair. The…
LCP-000079

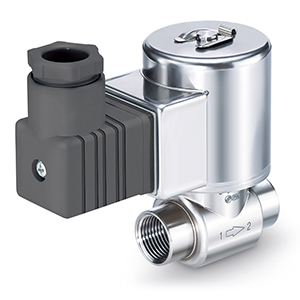

A normally closed, electrically actuated two-port fluid valve represented by an individual JSX series product photograph. Body, seal, port and coil are…
LCP-000105

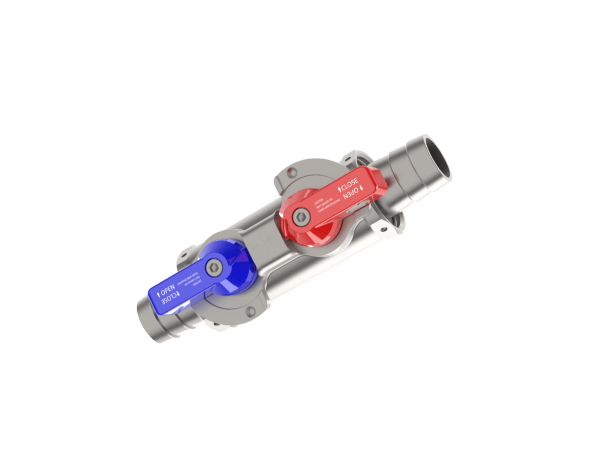

A linked red/blue ball-valve pair for a rack-to-secondary-loop connection. The interlock is the purchasing difference from two independent shutoff valves; final ends…
LCP-000108

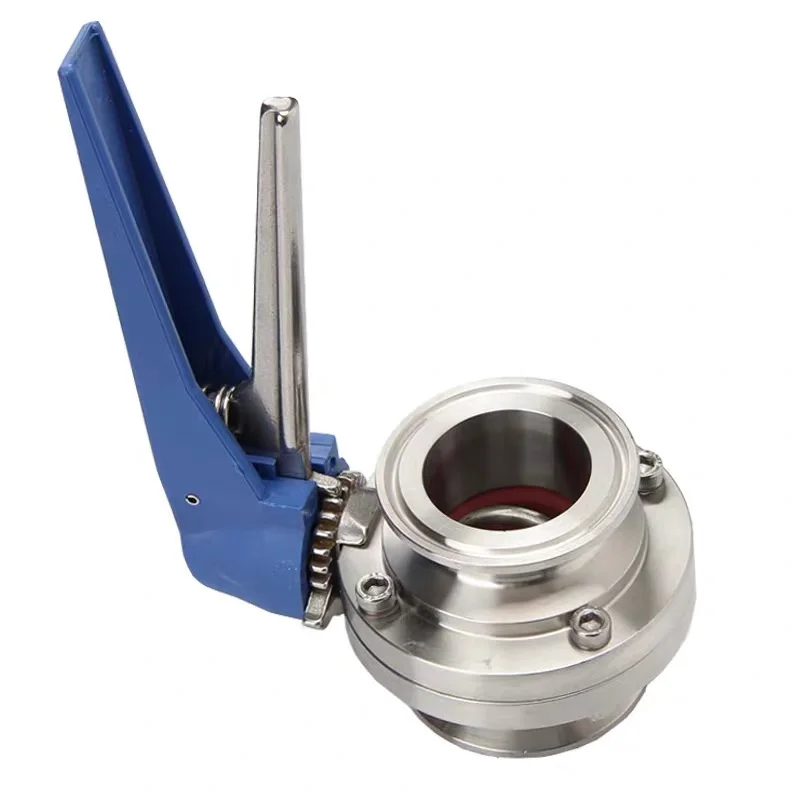

A lever-operated butterfly valve with clamp-end ferrules and a bolted body. The pictured valve is a configuration reference for secondary-loop piping; the…
LCP-000002
A serviceable manual isolation valve with union connections on both sides, represented by a documented thermoplastic series with material-, seal- and connection-dependent…
LCP-000097

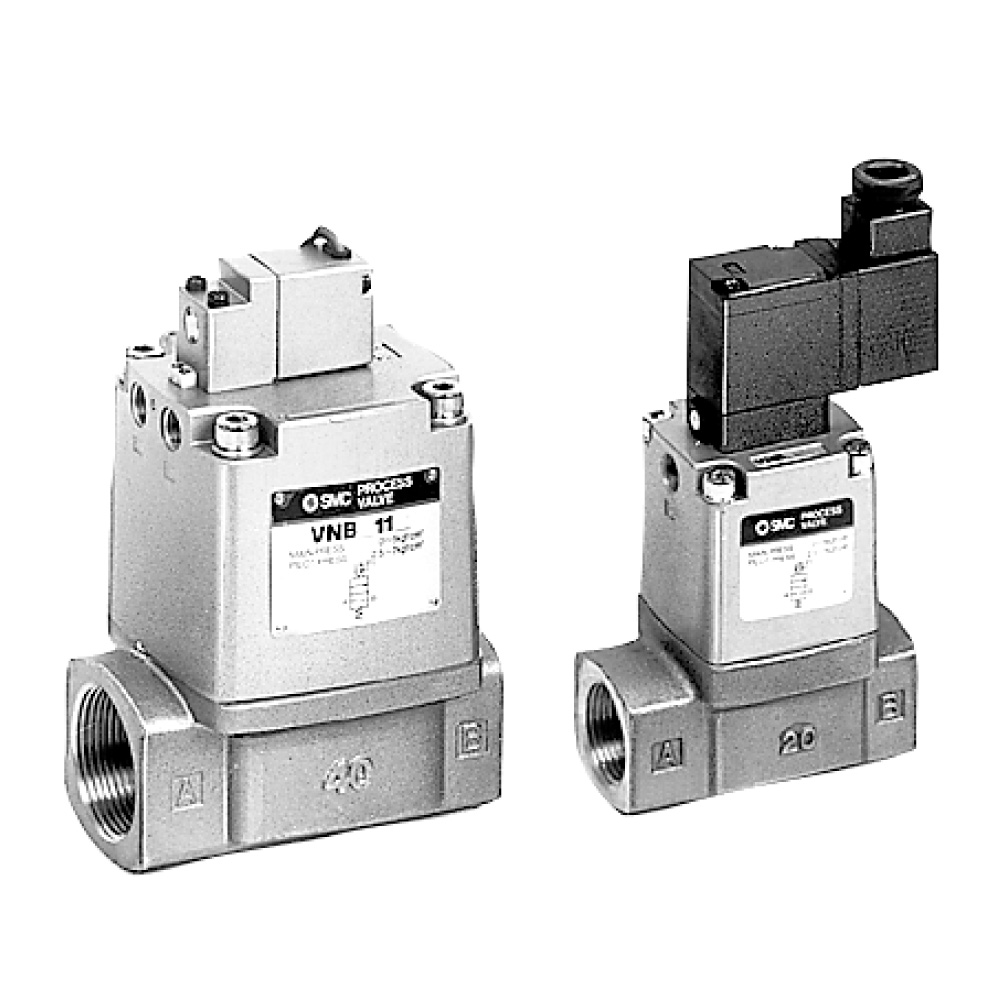

A configurable two-port process valve for a selected fluid circuit. SMC's VNB series has air-operated and external-pilot solenoid forms, with body and…
LCP-000107

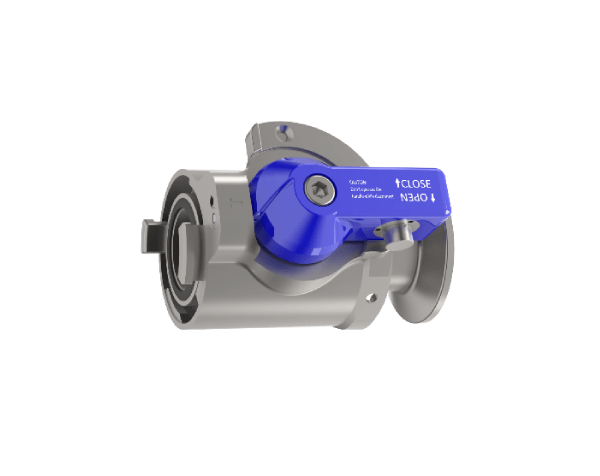

A single FND valve half with a sanitary-clamp interface instead of a hose barb or pipe thread. The original blue-handle rendering is…
LCP-000109

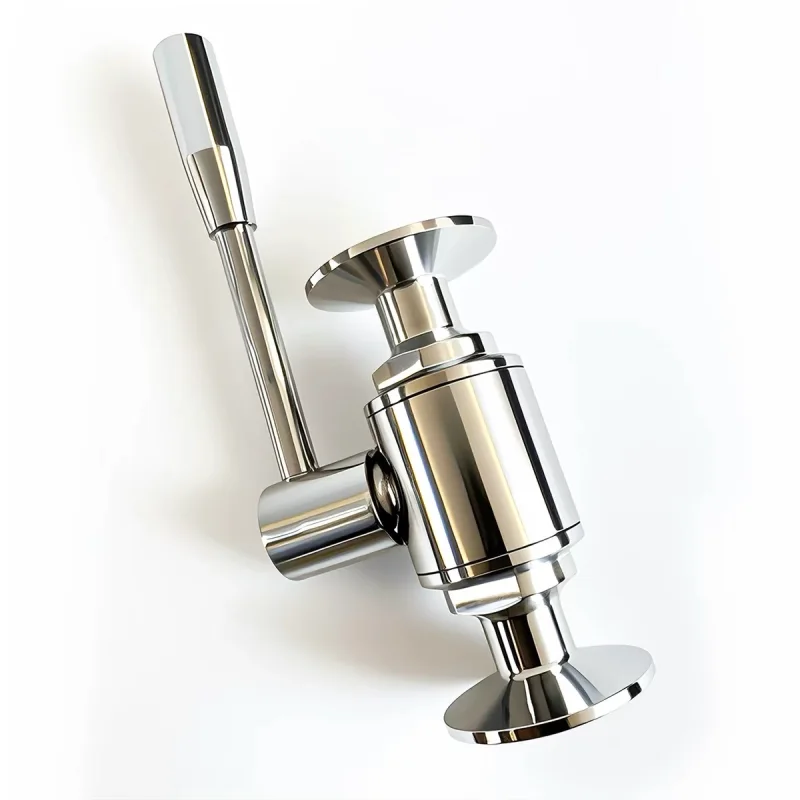

A manually operated ball valve with two inline clamp-end connections and a long lever. The pictured assembly gives a clear valve-body and…
LCP-000026
A distinctly pictured metal three-piece ball valve with a lever handle and controlled BG-series options for end forms, body material, seat and…
Specify with confidence
Isolation duty, manual/actuated operation and access Connection, bore and preferred valve construction, including ball-valve requirements Coolant, wetted materials, working pressure and temperature Shut-off leakage criteria and required verification Quantity and assembly interfaces
Isolation valves provide a defined shut-off point for maintenance or equipment separation. The available access and connection arrangement matter as much as the valve body.
State manual or actuated operation, preferred construction, port geometry, coolant and pressure conditions. Specify seat leakage acceptance, actuation access and whether the valve belongs to a larger assembly.
Identify the line or assembly to isolate, the required connections and the space available for operation. Specify preferred construction, including any ball-valve requirement, without assuming suitability from valve type alone.
Provide coolant, material, pressure, temperature and shut-off leakage requirements, together with quantity and verification needs. Configuration and documentation are confirmed with quotation.
Local editorial preview
Manufacturer examples retain their model and conditions. These references describe source products, not approved stock or supply. Images are pending final selection and rights review.
| Parameter | Documented value / configuration |
|---|---|
| Function | On/off control or limited flow regulation in space-constrained liquid-cooling installations. |
| Interface | Male and female threads to GB/T 7307 |
| Bore | DN6 to DN25 family range; listed part table shows DN8, DN10, and DN15. |
| Seal | Page claims leak-tight sealing but does not state seal material; datasheet required. |
| Actuation | Manual 90-degree quarter-turn handle. |
| Test conditions | media: water with up to 50% ethylene glycol; nominal pressure: PN16; temperature: -20°C to 120°C; test standard: GB/T 13927 |
| Parameter | Documented value / configuration |
|---|---|
| Flow direction | TrueSeal ball-valve family is described as bidirectional; confirm exact selected series. |
| Parameter | Documented value / configuration |
|---|---|
| Body and seal options | body: PVC-U; PVC-C; ABS; PP-H; PVDF; o rings: EPDM; FKM; FFKM; seat: PTFE; PVDFConditions: scope: Series options; selected order code required |
| Nominal pressure designations | ABS PP H: PN10; PVC U PVC C PVDF: PN16Conditions: Central-body nominal designation, not universal operating envelope; derating: Connection choice can reduce rating to PN10 or PN6; material-specific temperature curves apply; media: Curves use water or similar media; not unverified coolant chemistry |
| Connection options | Fusion/solvent sockets; Rp, NPT or Rc threads; flange and fusion-spigot configurationsConditions: scope: Options depend on size/material/order code; standards not interchangeable |
| Actuation options | Lockable hand lever; separately configured pneumatic or electric actuatorsConditions: image: Preview shows manual version, not electric actuator |
| Declared test standard | ISO 9393-2; EN 12266-1 leakage rate AConditions: scope: Datasheet statement, not independent certification or delivered-unit inspection certificate |
| Parameter | Documented value / configuration |
|---|---|
| Flow coefficient | Cv100 US: 12.9; Kv100: 11 Kv m³/h; Cv US gal/minConditions: DN15 variant; meaning: Fully open coefficients, NOT system operating flow |
| Parameter | Documented value / configuration |
|---|---|
| Flow coefficient | Cv100 US: 49; Kv100: 42 Kv m³/h; Cv US gal/minConditions: DN25 variant; meaning: Fully open coefficients, NOT system operating flow |
| Parameter | Documented value / configuration |
|---|---|
| Valve construction | Three-piece full-bore ball valve with blowout-proof stem and floating ballConditions: scope: manufacturer series description; exact end and material variant must be selected |
| Manufacturer max working pressure | up to 69 barConditions: scope: maximum stated for standard materials; pressure-temperature curve and exact configuration control |
| Listed temperature range | -28 to 232 degCConditions: scope: standard material basis; not rated at 69 bar throughout the entire interval |
| Body material ordering choices | BGSS CF8M; BGS4 CF8Conditions: scope: body code only; wetted materials and coolant compatibility need full selected BOM |
| Documented end forms | NPT and BSP threads; tube fittings; pipe or tube socket/butt weld variantsConditions: scope: ordering options, not every combination available; confirm exact code |
| Standard seat material | PTFEConditions: scope: standard materials table; selected order code and fluid compatibility require confirmation |
| Manufacturer leak test statement | Each valve factory leak-tested with nitrogen or compressed air at rated pressureConditions: scope: manufacturer process; not proof of assembled liquid-loop acceptance criteria |
| Catalogued end connection examples | BG catalogue dimension table includes 1/8 in and 1/4 in female NPT/BSPP examples, plus pipe butt-weld ends; connection type and size belong to the selected ordering code, not every BG valve.Conditions: scope: Examples in BG dimension table, not the photographed valve's exact ends |
| Parameter | Documented value / configuration |
|---|---|
| Applicable fluid | Water is included in the manufacturer's fluid/seal selection matrix; the selected coolant and seal still require confirmation. |
| Body material options | Stainless steel (SUS) or brass body ordering options |
| Seal material options | NBR, FKM or EPDM ordering options |
| Port connection options | 1/8, 1/4 and 3/8 in. connections are listed by valve size and orifice; R, NPT and G thread codes are listed. |
| Actuation | Normally closed direct-acting two-port solenoid valve; AC and DC coil codes depend on electrical configuration. |
| Water fluid temperature | 1 to 60 degCConditions: scope: Manual says no freezing; selected seal and actual coolant mixture require review |
| Maximum system pressure not differential | 1.0 MPaConditions: scope: This is maximum system pressure, not the maximum operating differential of every orifice or coil; SMC directs differential selection to the catalog |
| Parameter | Documented value / configuration |
|---|---|
| Product type | Two-port process valve with air-operated or external-pilot solenoid forms |
| Applicable media | Air, water, oil, gas or vacuum according to body and seal selection |
| Orifice options | 7–50 mm across listed configurations |
| Port options | Rc (PT) 1/8 to 2 across listed configurations |
| Seal options | NBR, FKM or EPR listed by configuration |
| Parameter | Documented value / configuration |
|---|---|
| Construction | Two matching ball-valve bodies are connected by a bidirectional interlock for supply/return operation |
| Body material | SUS304 stainless steel body; EPDM listed as standard sealing-ring material |
| Listed media | PG25 and DI water listed for the FND series, subject to ordered configuration and operating conditions |
| Listed nominal bore options | FND25 and FND40 nominal-bore variants are tabulated separately; the maker labels them 25 (1 in) and 40 (2 in)Conditions: scope: Manufacturer series labels; nominal codes are not measured internal diameters or interchangeable end fittings |
| Series max working pressure | 150 psi maximum working pressure in the FND series table psiConditions: scope: Maker series statement; verify selected valve-half, seal, end connection and complete pair for actual duty |
| Listed operating temperature range | -15 to 80 degCConditions: scope: FND series range; coolant and selected seal compatibility remain separate |
| Parameter | Documented value / configuration |
|---|---|
| End connection | 90° elbow hose-barb end variants are separately listed for FND25 and FND40, with blue and red handle versions |
| Material seal | FND series lists SUS304 body and EPDM seal; actual barb and hose fit require variant confirmation |
| Listed nominal bore options | FND25 and FND40 90-degree hose-barb valve-half variants are listed with blue or red handle optionsConditions: scope: Order-specific hose-barb geometry and hose ID are not established by the nominal series code |
| Series max working pressure | 150 psi FND series maximum working pressure psiConditions: scope: Series reference only; verify selected half, barb-hose assembly and complete interlock pair before assigning a duty |
| Listed operating temperature range | -15 to 80 degCConditions: scope: FND series range, not a hose-assembly or coolant-compatibility rating |
| Parameter | Documented value / configuration |
|---|---|
| End connection | Sanitary-clamp end variants are listed separately for FND25 and FND40, with blue and red handle versions |
| Material seal | FND series lists SUS304 body and EPDM seal; selected clamp seal and mating flange require order review |
| Listed nominal bore options | FND25 and FND40 sanitary-clamp valve-half variants are listed with blue or red handle optionsConditions: scope: Confirm mating clamp flange, gasket and exact size code for the ordered valve half |
| Series max working pressure | 150 psi FND series maximum working pressure psiConditions: scope: Series reference only; clamp, gasket and connected piping can set a lower assembled rating |
| Listed operating temperature range | -15 to 80 degCConditions: scope: FND series range; actual clamp-gasket and coolant compatibility require selected parts |
| Parameter | Documented value / configuration |
|---|---|
| Valve configuration | Manual butterfly valve with clamp-end ferrules, bolted body and lever handle |
| Material options | 304 and 316 stainless steel are referenced; exact body, disc, stem and other wetted grades require order confirmation |
| Connection reference | A supplier option lists diameter 19 and a 50.5 mm clamp ferrule; the meaning of diameter 19 and mating profile are not specified by that pair of values |
| Parameter | Documented value / configuration |
|---|---|
| Valve configuration | Manual straight-through ball valve with two inline clamp ends and a long metal lever |
| Material options | 304 and 316 stainless steel are listed as material references; body, ball, stem and other wetted grades need separate confirmation |
| Connection reference | Supplier examples pair diameter 12.7 with 25 mm clamp ferrule and diameter 19 with 50.5 mm clamp ferrule; bore and ferrule profile require drawing review |
| Parameter | Documented value / configuration |
|---|---|
| Code dependent operating pressure | The VNB instruction table distinguishes low vacuum to 0.5 MPa and low vacuum to 1 MPa operating-pressure configurations; it does not assign one maximum to every VNB valveConditions: scope: Reference only until full VNB ordering code, actuation, seal, medium and pressure differential are confirmed; this is not a site supply rating |
| Parameter | Documented value / configuration |
|---|---|
| Code dependent fluid temperature | The instruction table lists -5 to 60 °C for its listed solenoid/standard configurations and -5 to 99 °C for specified air-operated water/oil configurations, both without freezingConditions: scope: The 99 °C row is restricted to air-operated water/oil configurations; do not apply it to every VNB or every coolant |
